Continuously inspired by some of the most fascinating members of the cosmic community, we expand our options to further power up your evergrowing gaming universe and introduce the MAGNETAR series of next-gen power supplies for your ultimate gaming PC.
The MAGNETAR series delivers 80 PLUS GOLD certified efficiency, latest features, and outstanding electrical reliability backed up by our 8-Year Warranty available on all models.
DISCOVER MAGNETAR
PEACE OF MIND

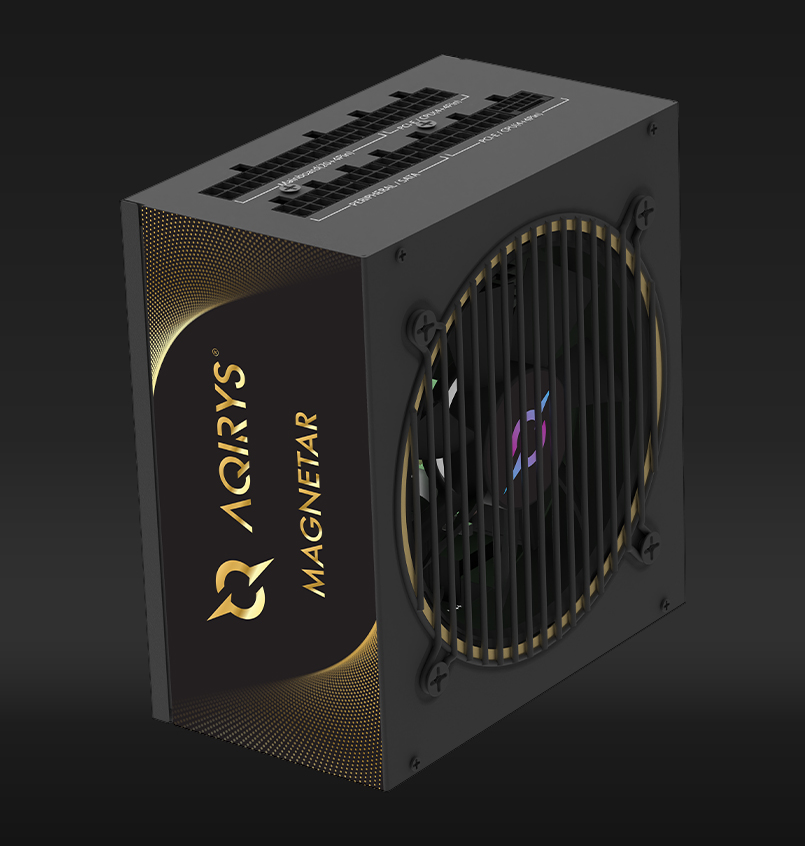

Engineered to the last detail and carefully tested to perform inside next-gen gaming PCs, the ATX 3.0 Ready MAGNETAR 1000W power supply employs high-quality components and essential features like Japanese A-Grade Nichicon main capacitors rated for 105°C, Hydro Dynamic Bearing 120 mm fan with high-static pressure for excellent cooling, temperature-controlled fan speed for quiet operation, and Active Power Factor Correction which uses electronic circuits in efficiently distributing power to devices connected to the power supply.
A full array of protections is also embedded, shielding against multiple events: Over Voltage, Under Voltage, Over Current, Over Power, Over Temperature, No-load Operation, Short Circuit, and Surge and Inrush.
PCI-E 5.0 READY

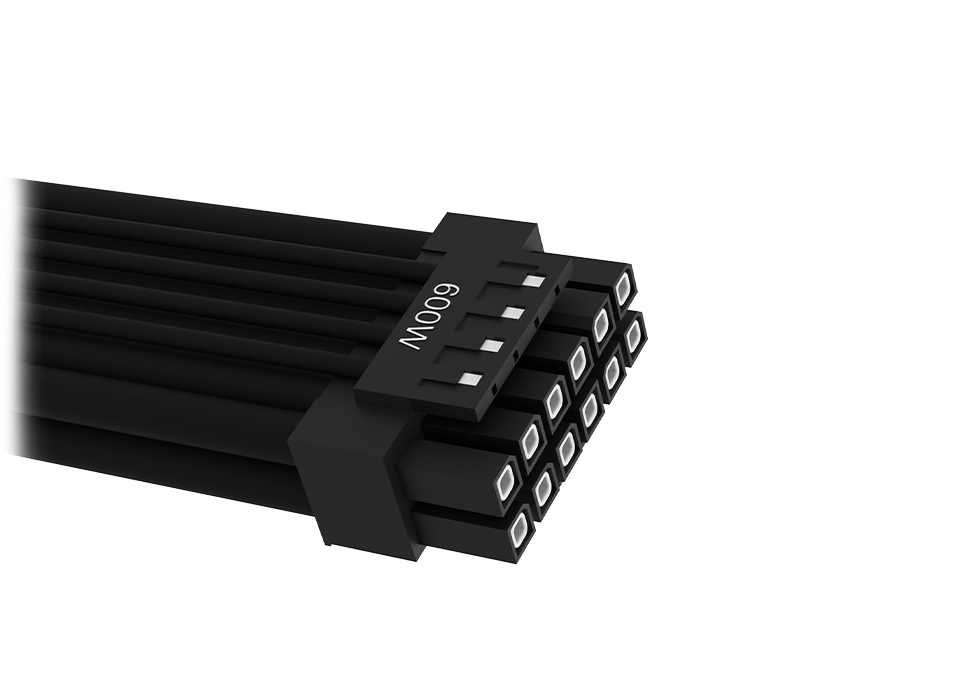

Featuring the new PCIe 5.0 GPU connector, MAGNETAR 1000W is set to reliably deliver up to 600W of power to the most advanced PCIe 5.0 graphics card via a single Gen 5 12VHPWR high-quality cable without the need for a 12+4pin adapter.
AESTHETICS MATTERS

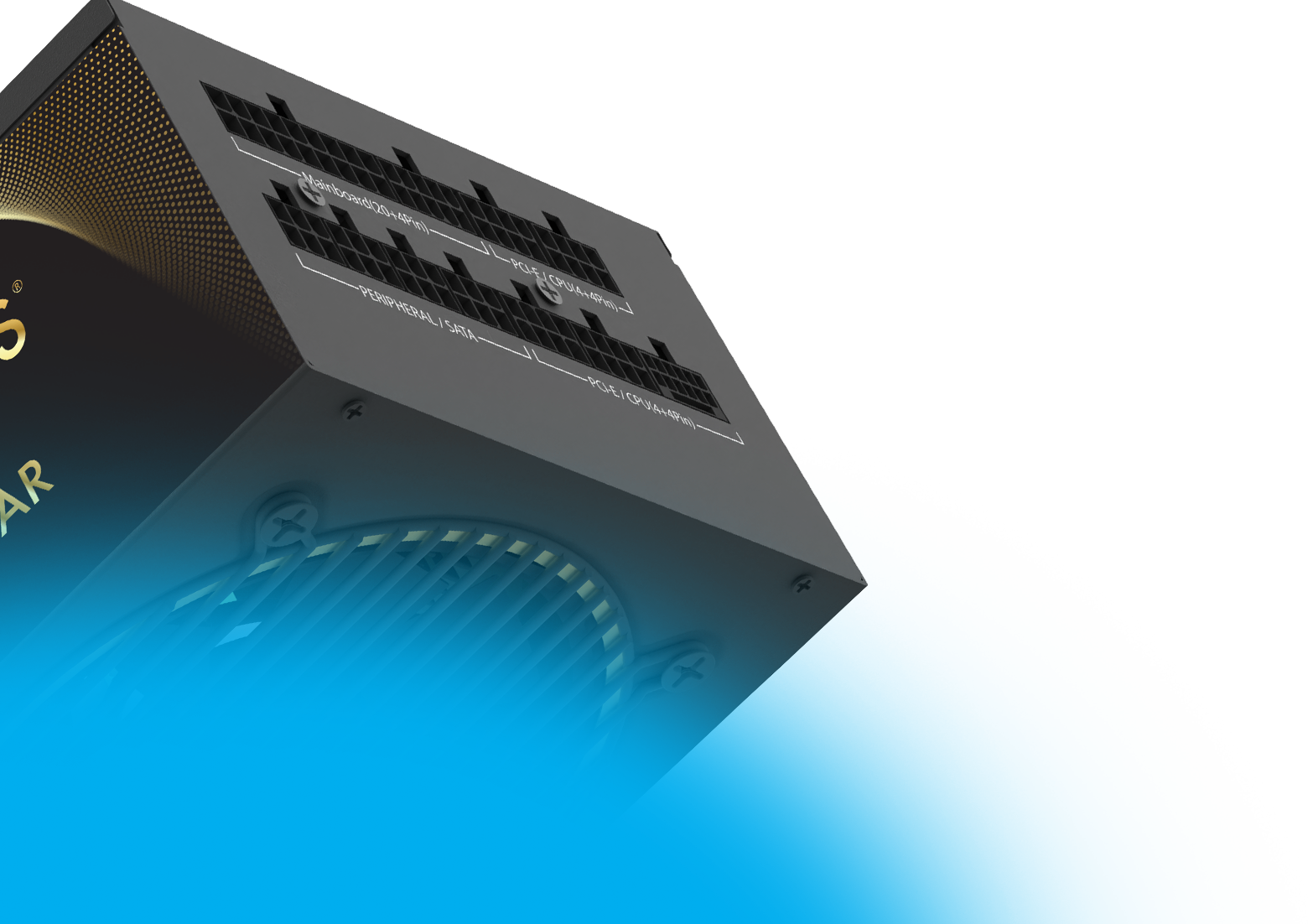

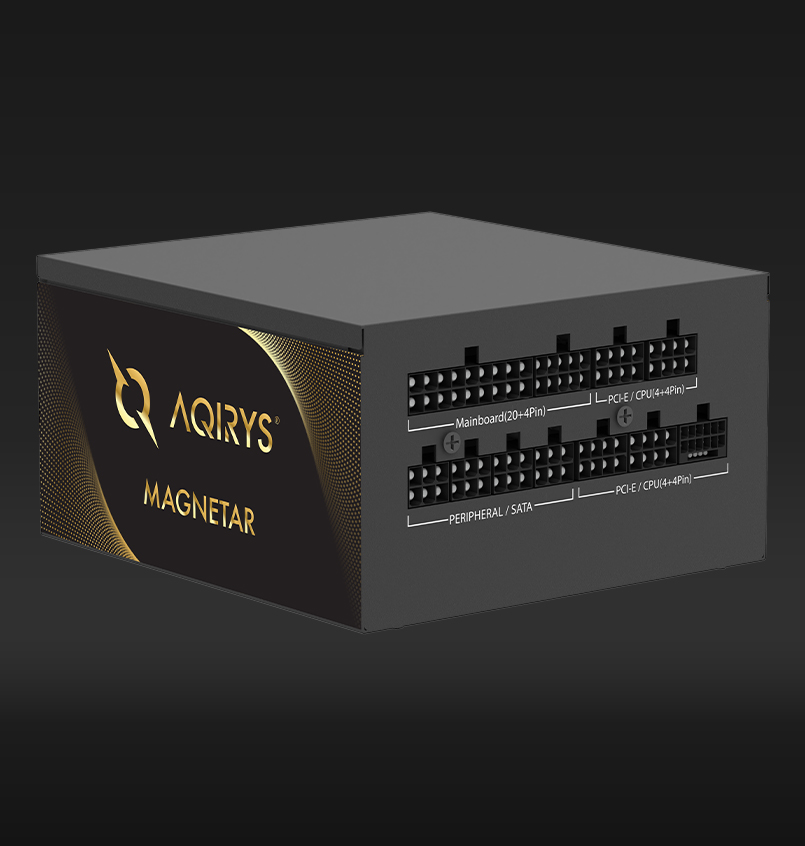

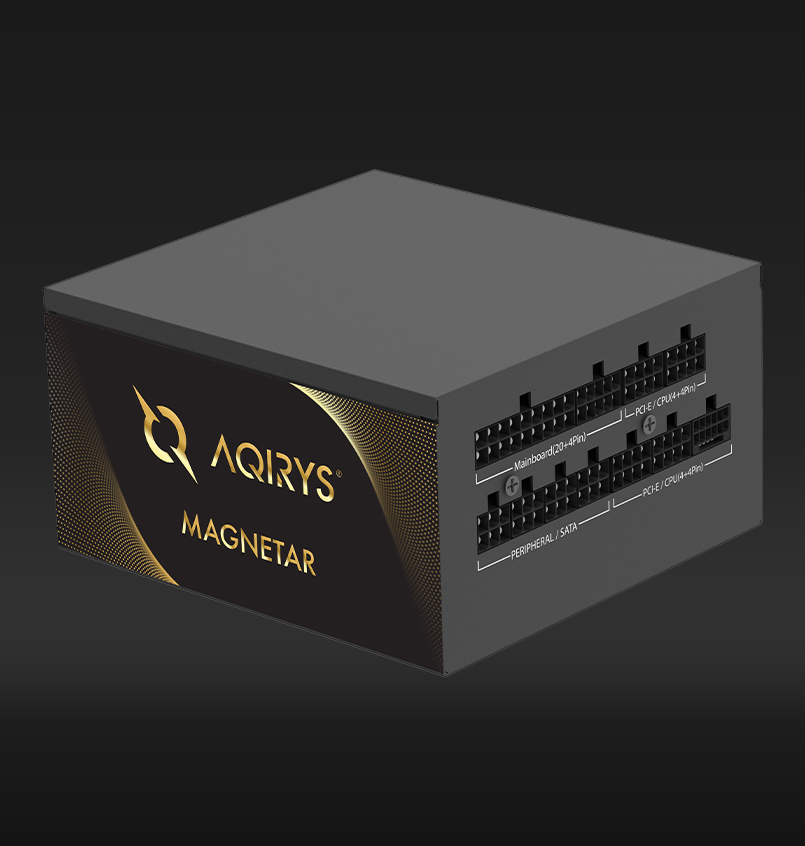

All MAGNETAR models are fully modular and use ribbon-type black cables, allowing you to install only the ones you need. This heightens the build aesthetics keeping the interior tidy and clean and plays a decisive role in ensuring a non-restricted airflow inside your PC.
FUN FACTS
One of the most magnetic items in the universe, a magnetar forms when a star's core collapses in a supernova, which reduces its size and multiplies its magnetic field by millions. The strongest permanent magnet on Earth is about 1 tesla, and a magnetar's magnetic field is at least 100 billion times that. The nearest magnetar is around 190 quadrillion (190,000,000,000,000,000) kilometers away – if it were only 150,000 km from the Earth, it would erase the information stored on all credit cards.
TECHNICAL DATA
- Continuous power: 1000W
- Form factor: ATX
- ATX Version: ATX V2.52 (3.0 Ready)

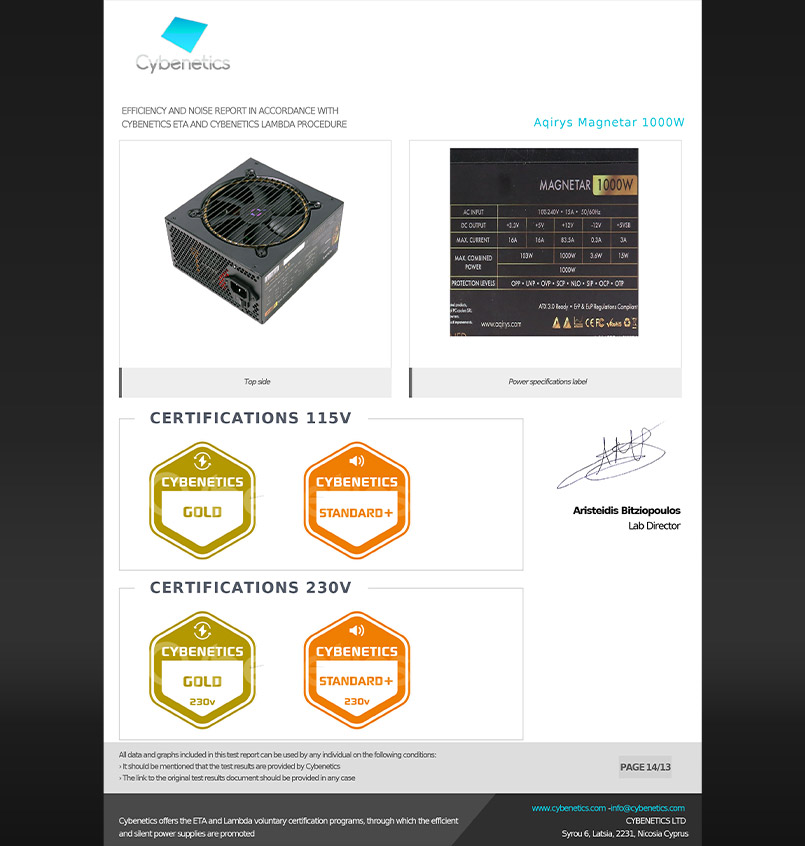

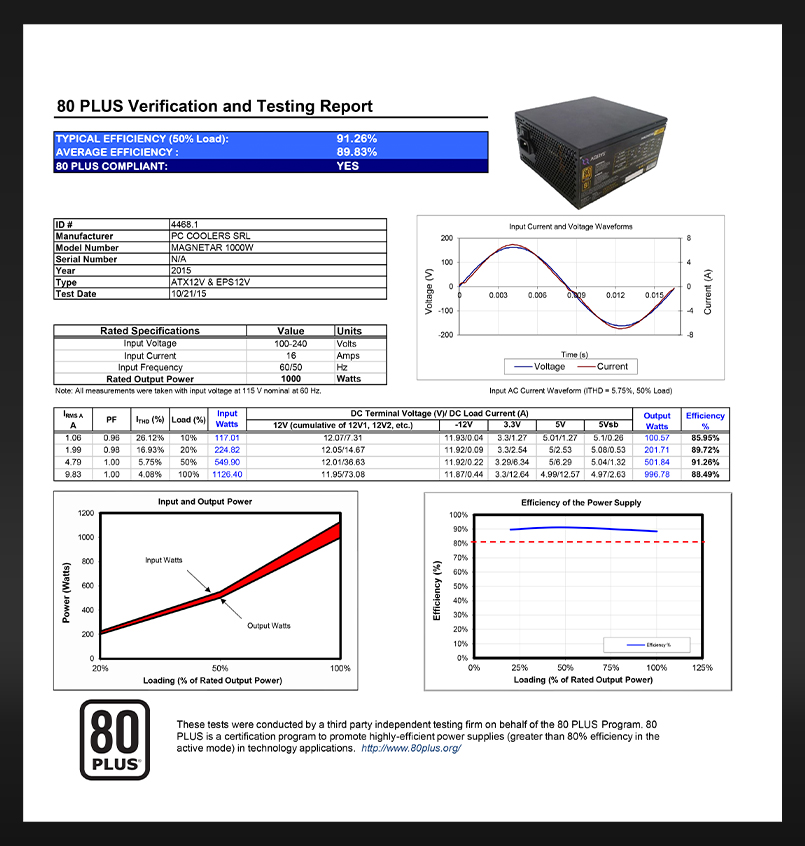

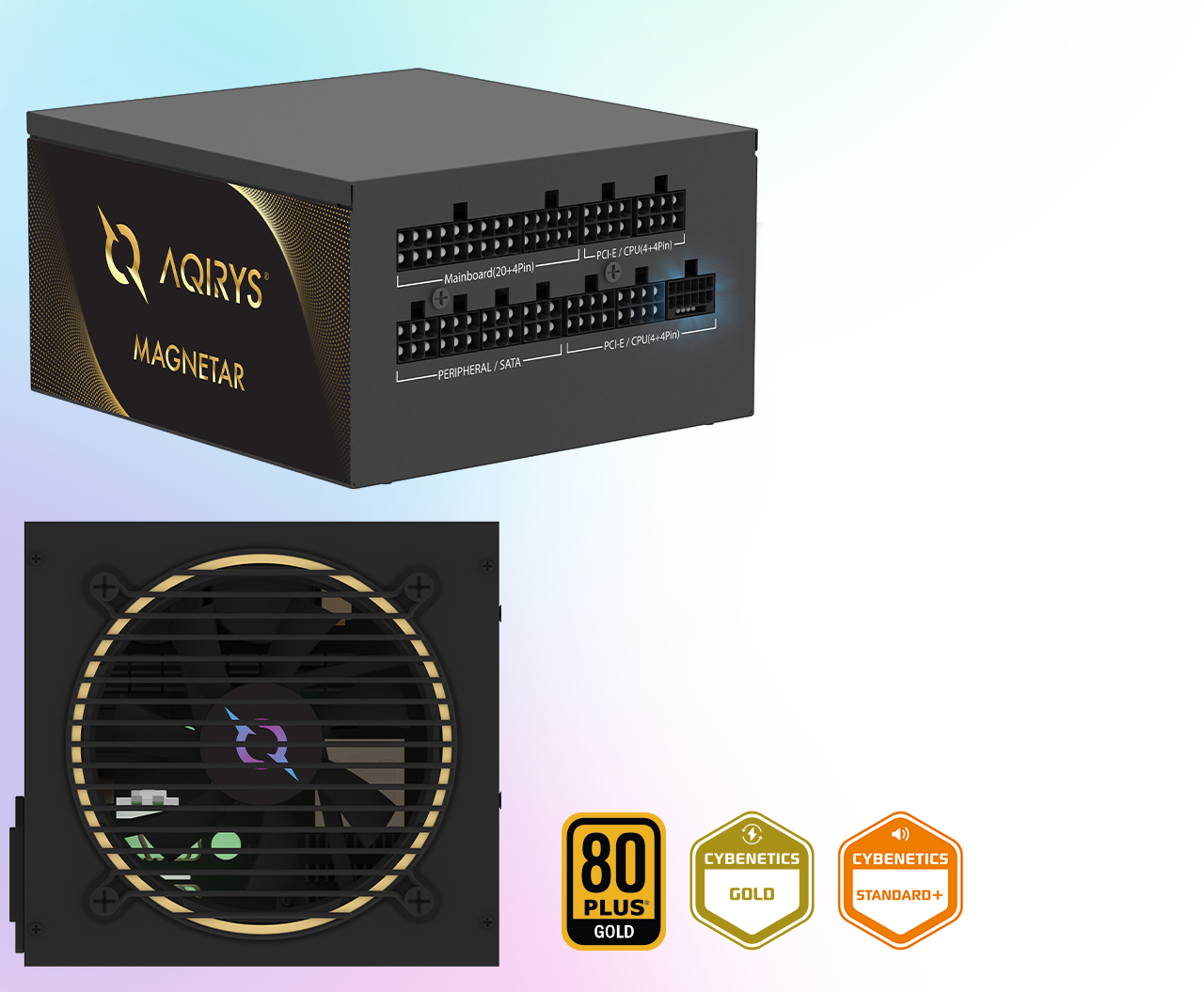

- Efficiency: 80PLUS® Gold certified, Cybenetics Gold certified, Cybenetic Standard+ noise level certified
- Intel® C6/C7: Yes
- PFC: Active
- Illumination: No
- Modular cables: Yes
- Cable type: Flat, black

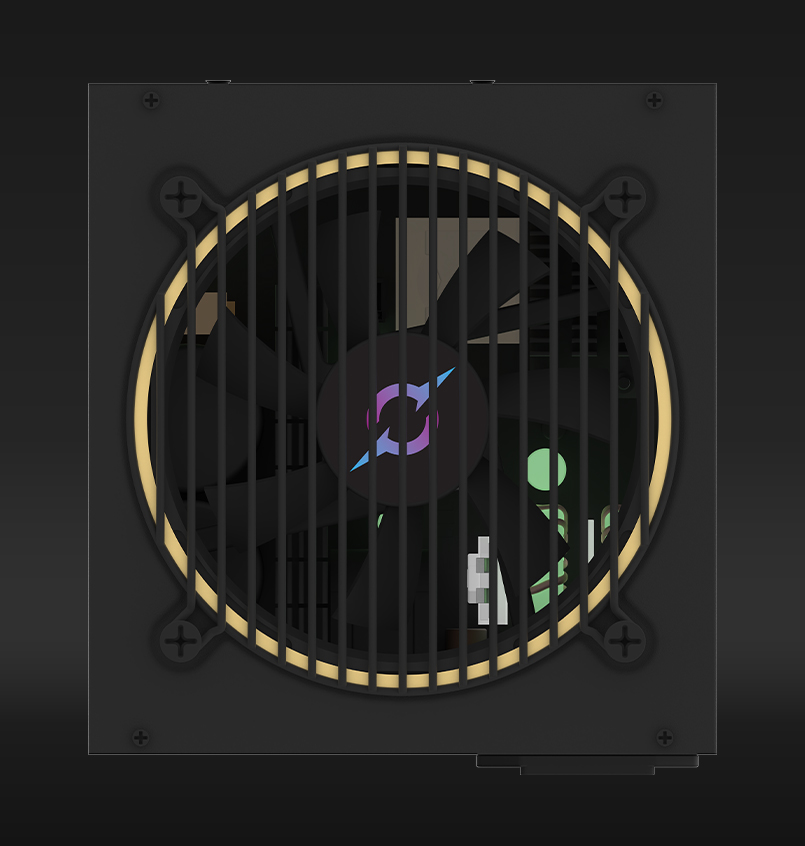

- Fan size: 120 mm
- Fan speed: Temperature controlled
- Fan technology: Hydro Dynamic Bearing

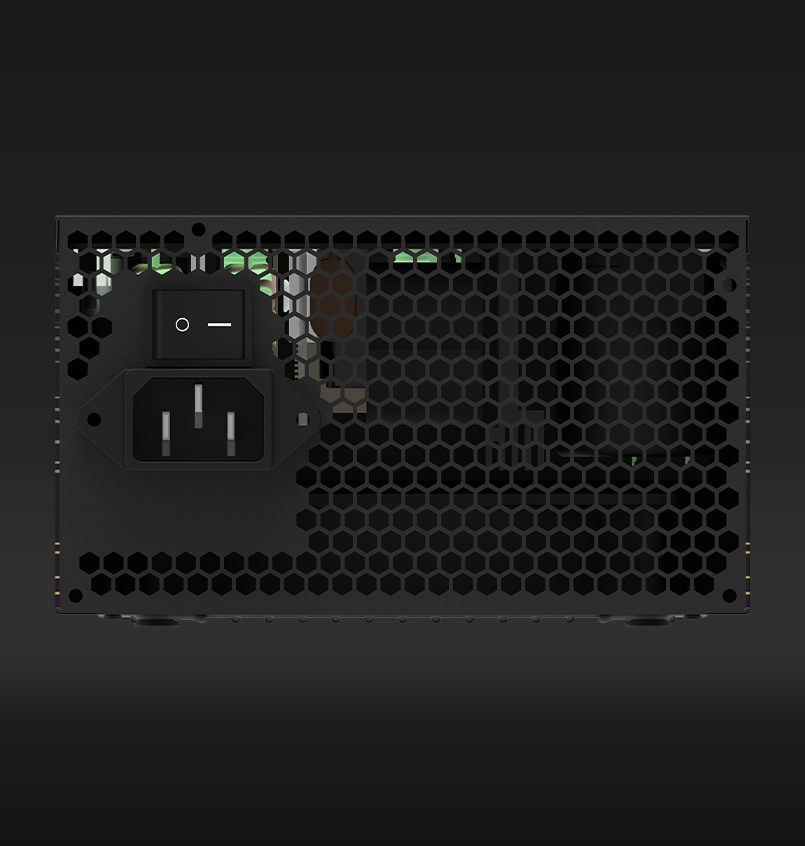

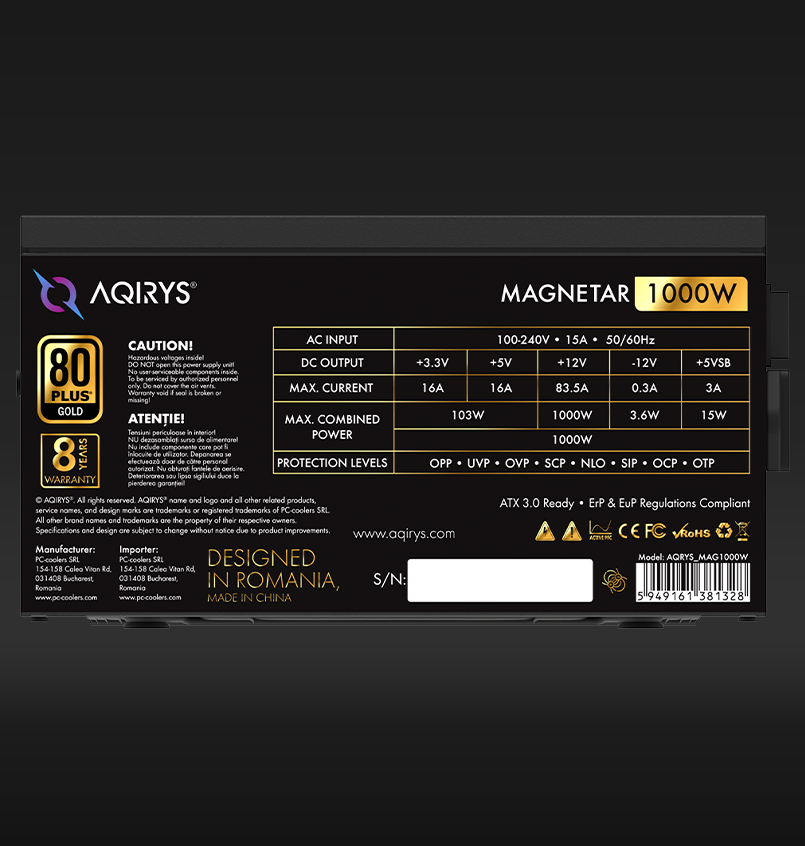

- AC Input: 100 - 240V, 15A, 50/60Hz
- DC Output +3.3V: 16A
- DC Output +5V: 16A
- DC Output +12V1: 83.5A
- DC Output -12V: 0.3A
- DC Output +5Vsb: 3A

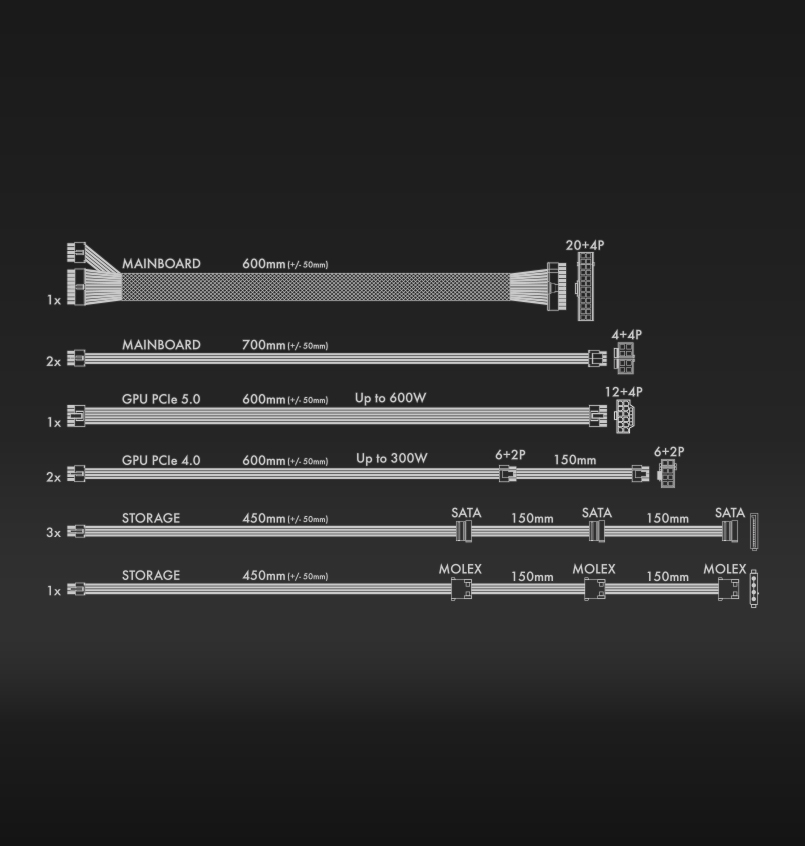

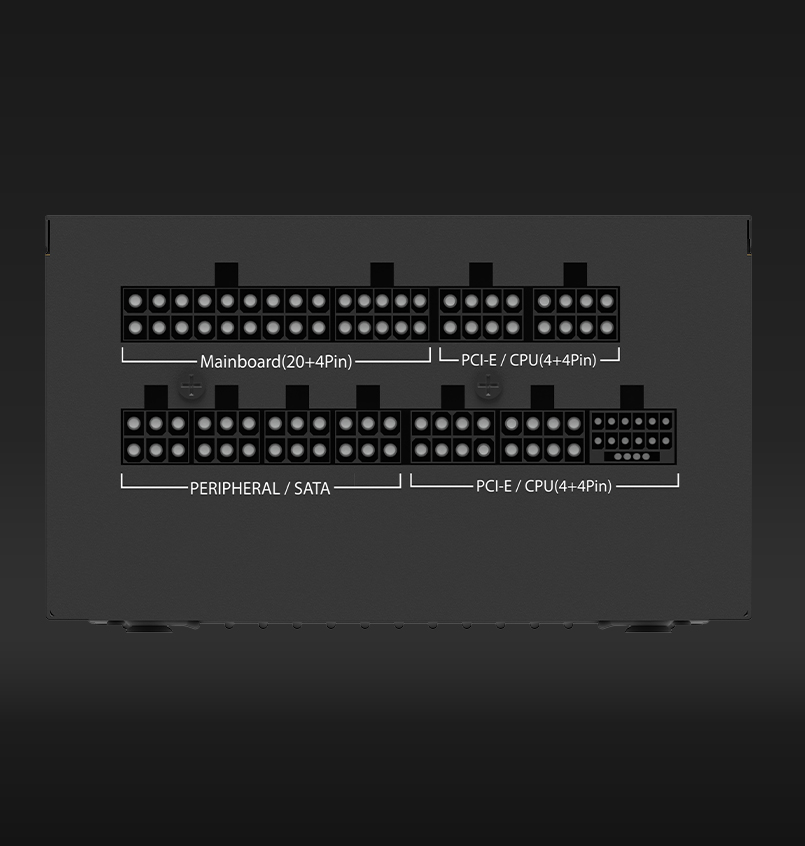

- MB connector: 1x 20+4P
- CPU connector: 2x 4+4P
- PCIe connector: 2x (2x 6+2P)
- PCIe (Gen 5.0) connector: 1x 12+4P
- SATA connector: 9x
- Molex connector: 3x 4P
- Protections: OOP, UVP, OVP, SCP, NLO, SIP, OCP, OTP
- Environmental compliance: RoHS, WEEE, ErP Lot 6
- Dimensions (LxWxH): 160 x 150 x 86 mm
- Weight: 1450 g
- Color: Black
- EAN: 5949161381328
- Warranty: 8 Years
