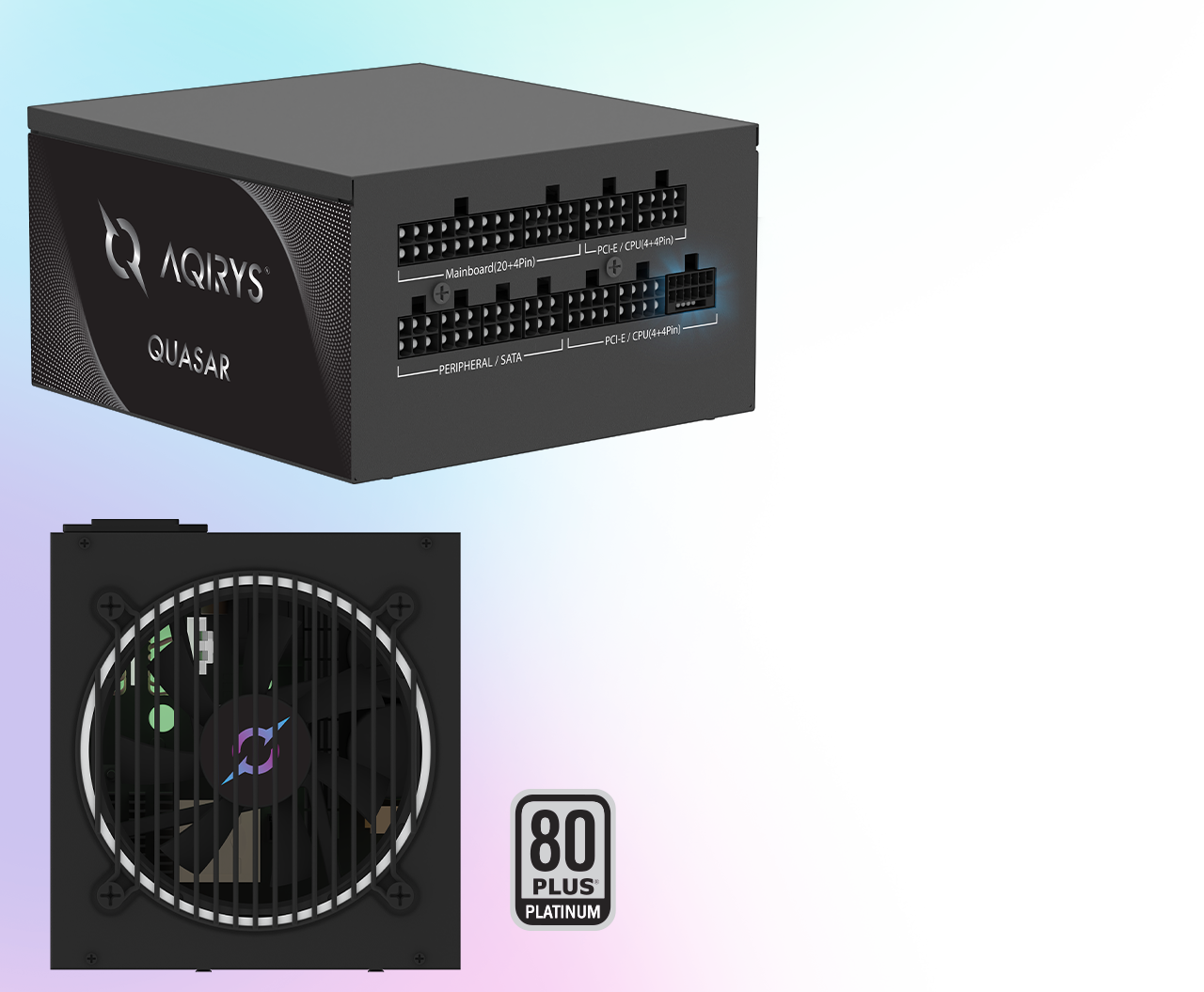

Continuously inspired by some of the most fascinating members of the cosmic community, we expand our options to further power up your evergrowing gaming universe and introduce the QUASAR series of next-gen power supplies for your ultimate gaming PC.
The QUASAR series delivers 80 PLUS PLATINUM certified efficiency, latest features, and outstanding electrical reliability backed up by our 8-Year Warranty.
DISCOVER QUASAR
PEACE OF MIND

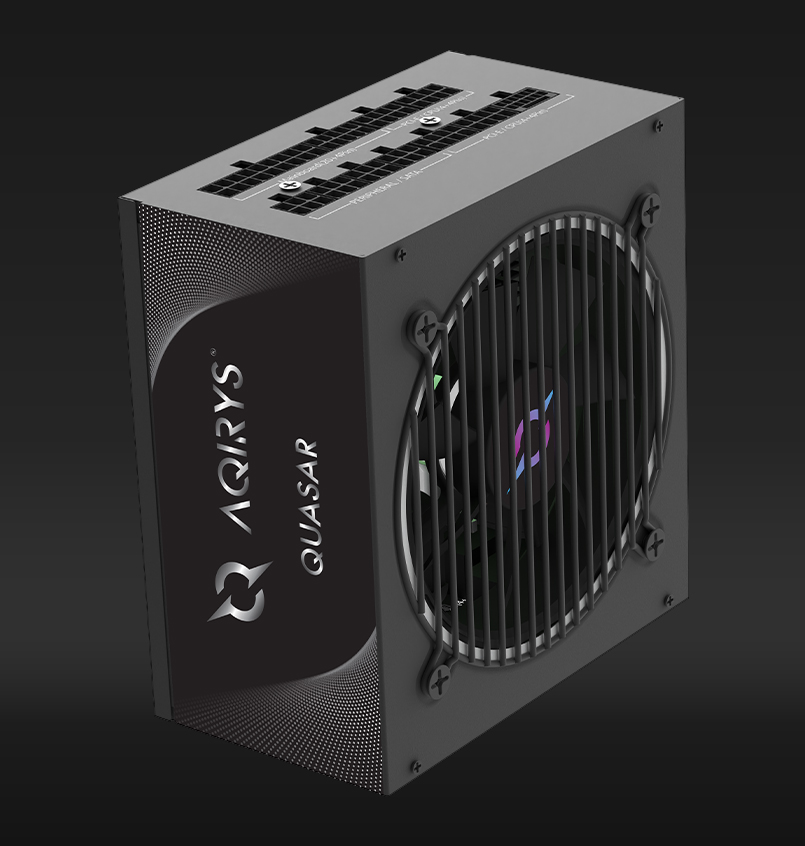

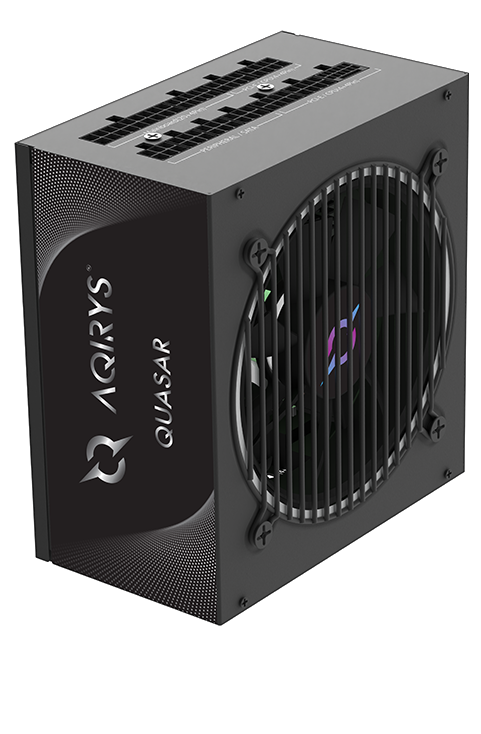

Engineered to the last detail and carefully tested to perform inside next-gen gaming PCs, the ATX12V 3.0 Ready QUASAR [1200W] power supply employs high-quality components and essential features like Japanese A-Grade Nichicon main capacitors rated for 105°C, Hydro Dynamic Bearing 120 mm fan with high-static pressure for excellent cooling, temperature-controlled fan speed for quiet operation, and Active Power Factor Correction which uses electronic circuits in efficiently distributing power to devices connected to the power supply.
A full array of protections is also embedded, shielding against multiple events: Over Voltage, Under Voltage, Over Current, Over Power, Over Temperature, No-load Operation, Short Circuit, and Surge and Inrush.
PCI-E 5.0 READY

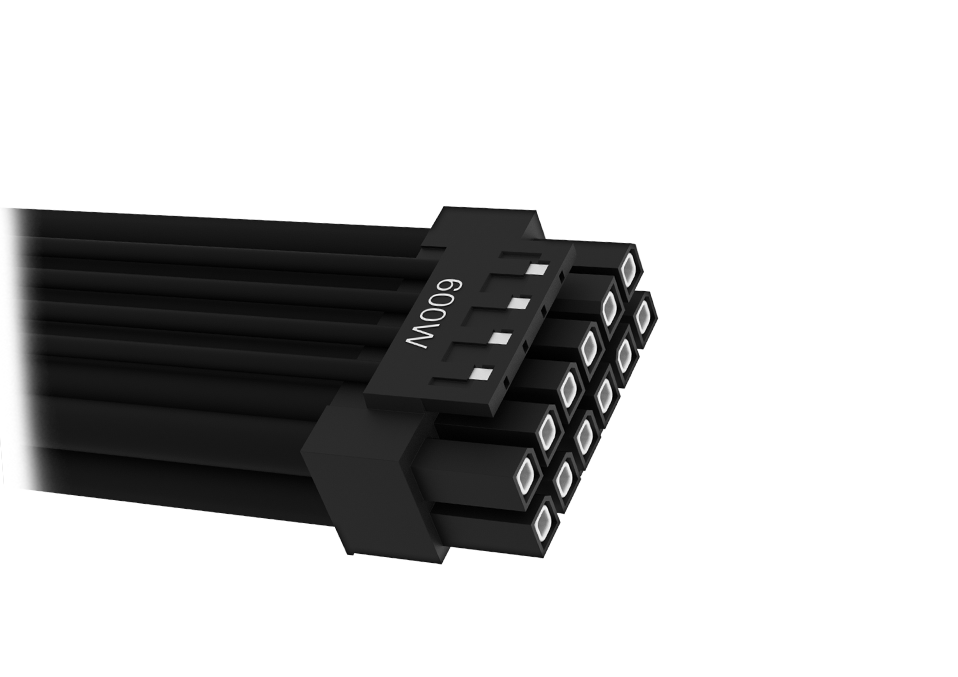

Featuring the new PCIe 5.0 GPU connector, QUASAR 1200W is set to reliably deliver up to 600W of power to the most advanced PCIe 5.0 graphics card via a single Gen 5 12VHPWR high-quality cable without the need for a 12+4pin adapter.
AESTHETICS MATTERS

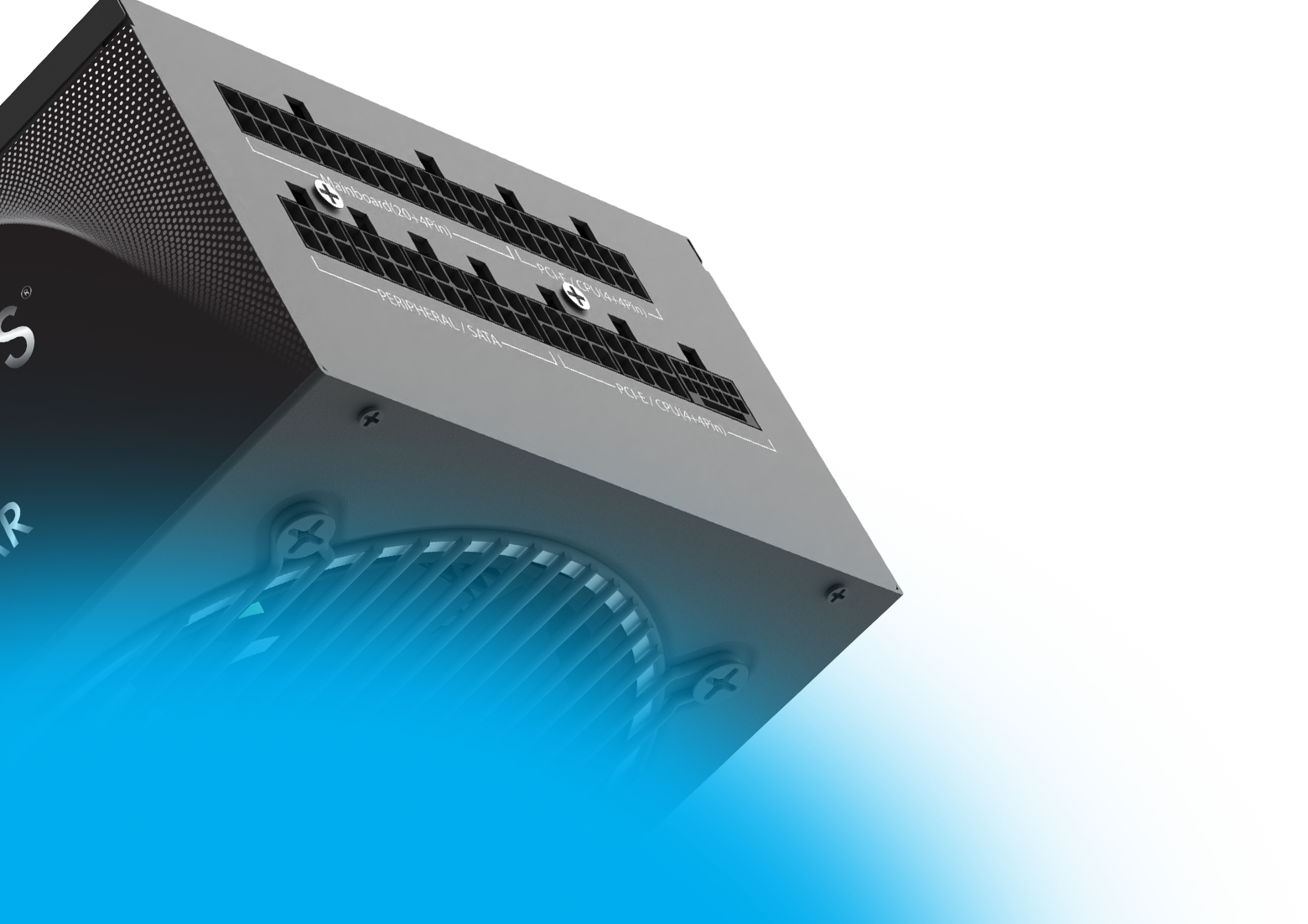

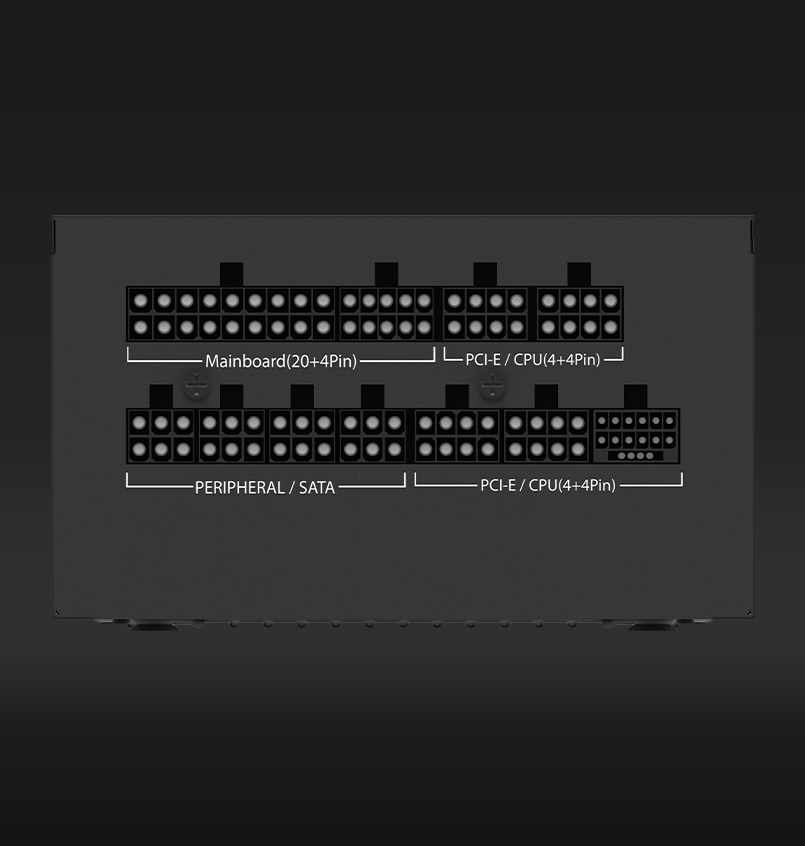

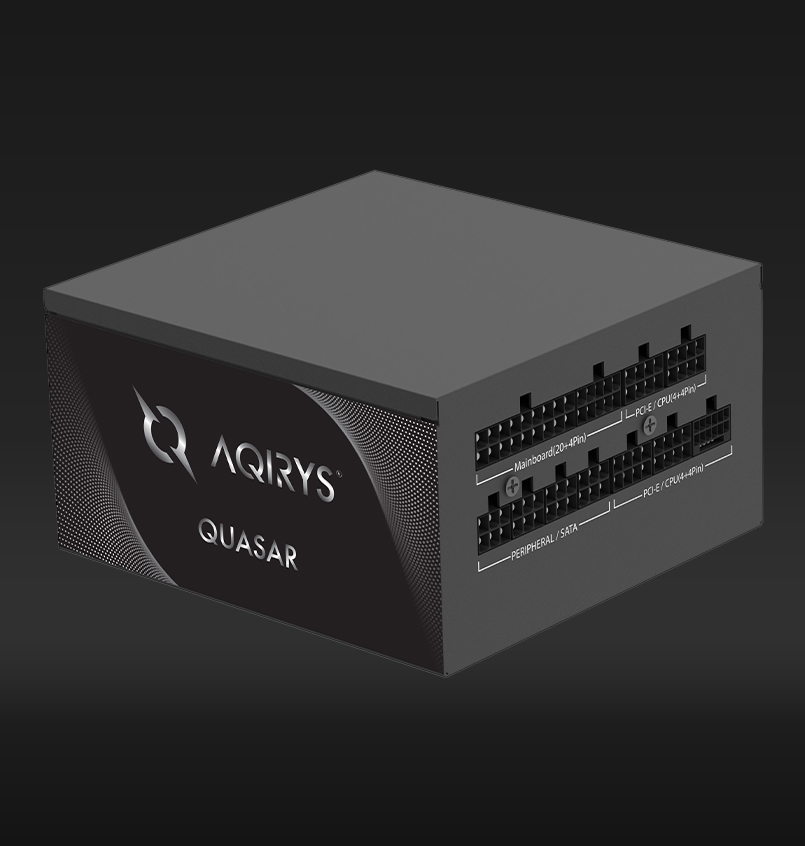

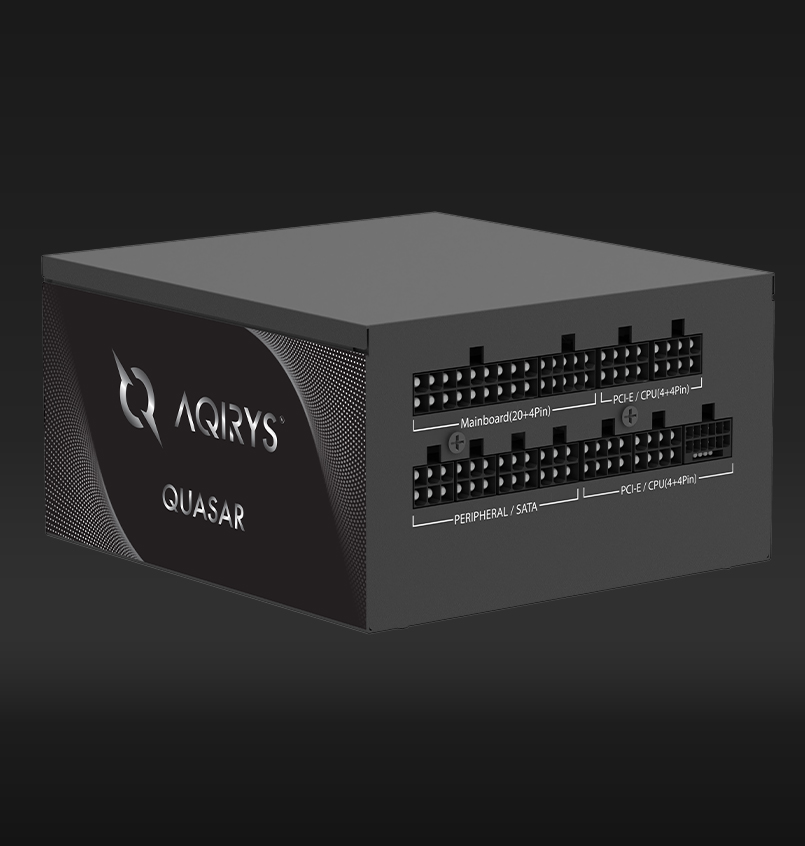

All QUASAR models are fully modular and use ribbon-type black cables, allowing you to install only the ones you need. This heightens the build aesthetics keeping the interior tidy and clean and plays a decisive role in ensuring a non-restricted airflow inside your PC.
FUN FACTS
Quasars are known for being the most luminous objects in our entire universe. They are even more luminous than several galaxies combined together – compared to our Milky Way, they can be anywhere from 10 to 100000 times as bright. Powered by black holes a billion times as massive as our sun, "Quasars are capable of emitting hundreds or even thousands of times the entire energy output of our galaxy, making them some of the most luminous and energetic objects in the entire universe," according to NASA.
TECHNICAL DATA
- Continuous power: 1200W
- Form factor: ATX
- ATX Version: ATX V2.52 (3.0 Ready)

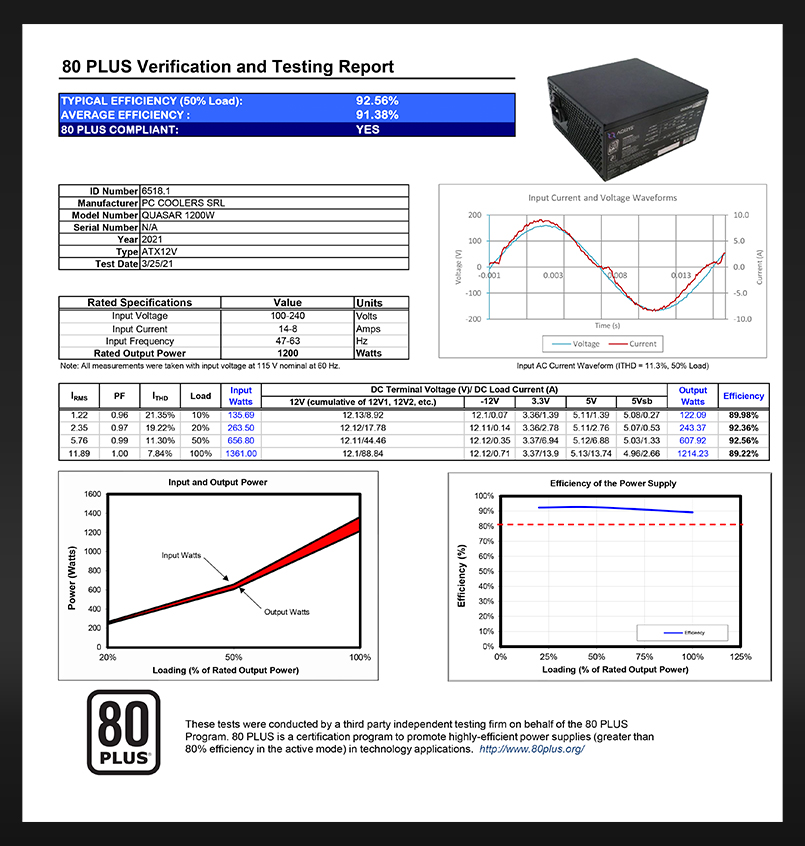

- Efficiency: 80PLUSĀ® Platinum certified
- IntelĀ® C6/C7: Yes
- PFC: Active
- Illumination: No
- Modular cables: Yes
- Cable type: Flat, black

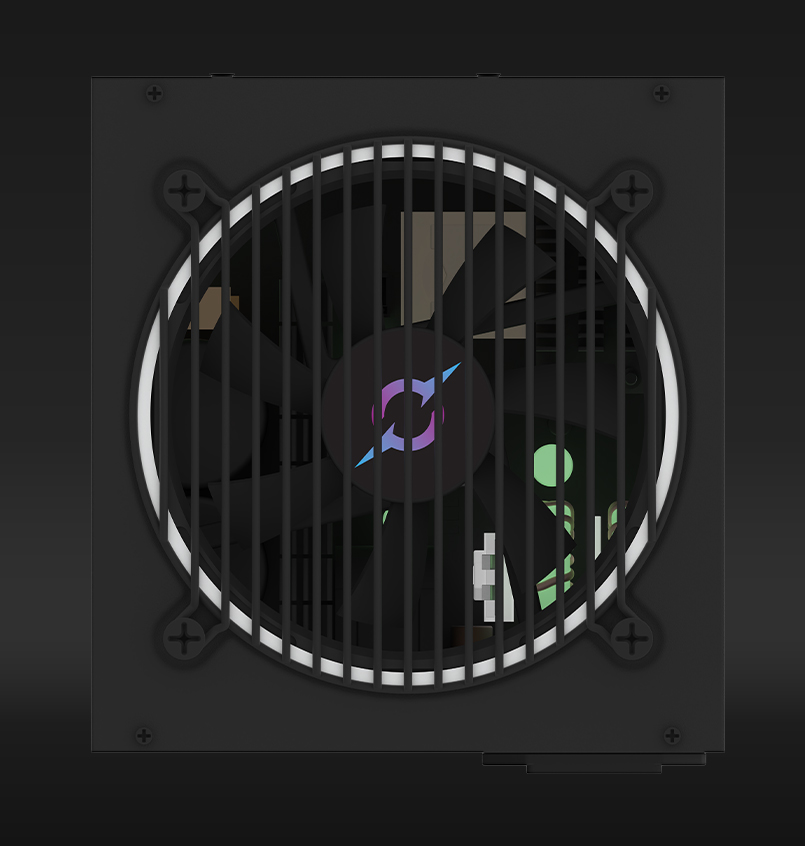

- Fan size: 120 mm
- Fan speed: Temperature controlled
- Fan technology: Hydro Dynamic Bearing

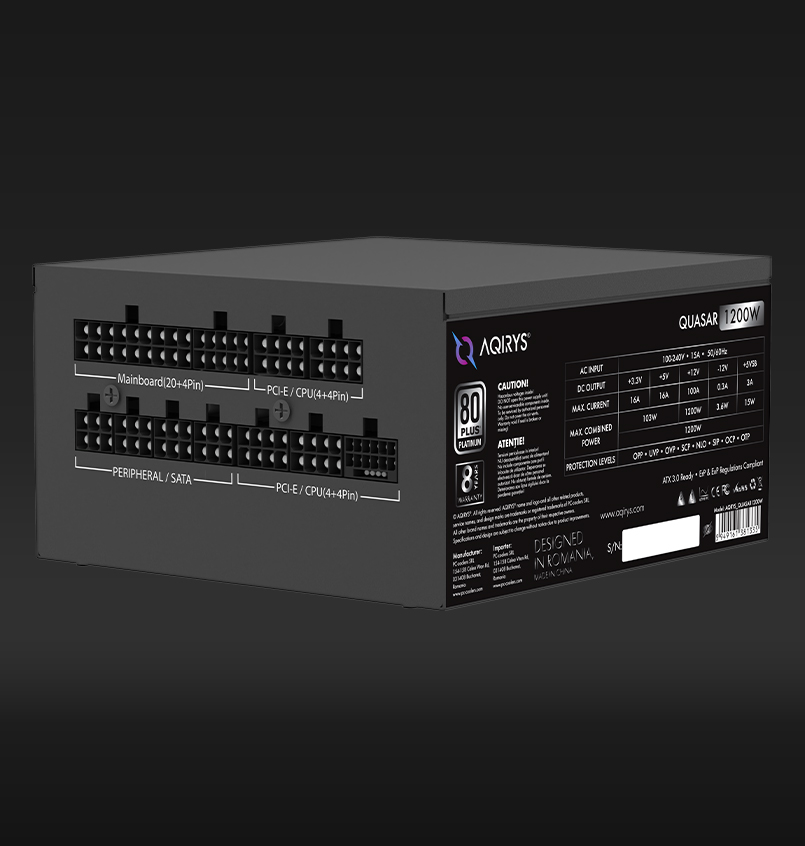

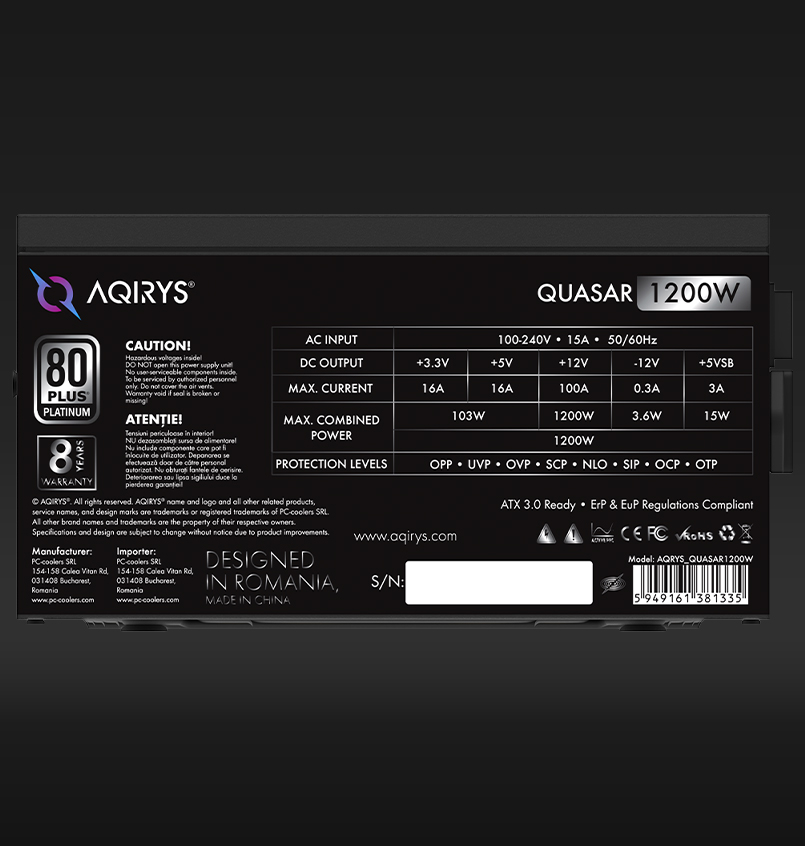

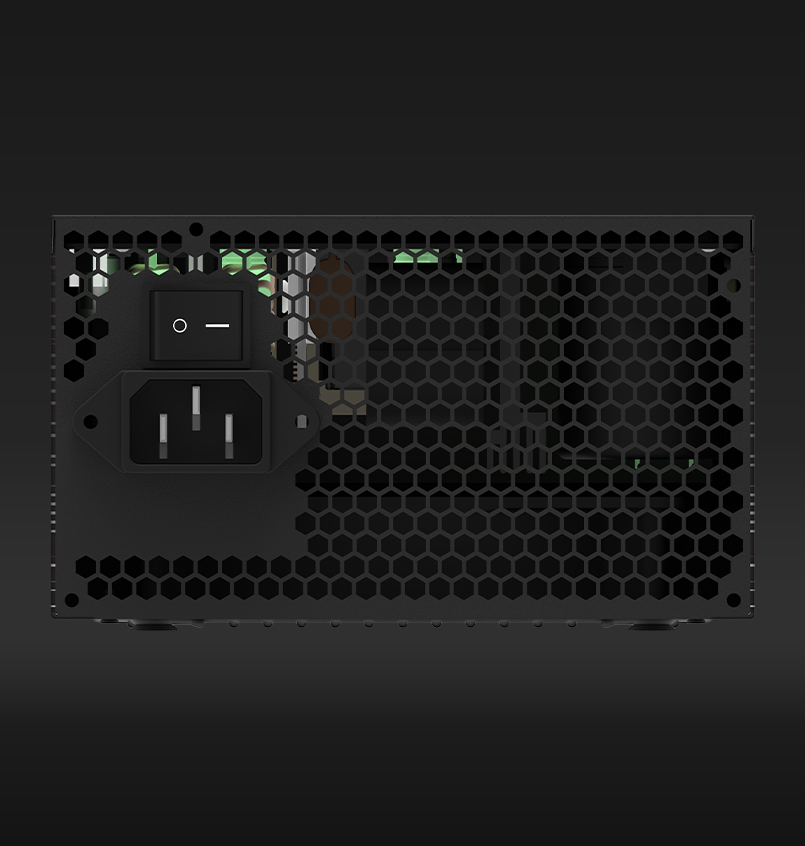

- AC Input: 100 - 240V, 15A, 50/60Hz
- DC Output +3.3V: 16A
- DC Output +5V: 16A
- DC Output +12V1: 100A
- DC Output -12V: 0.3A
- DC Output +5Vsb: 3A

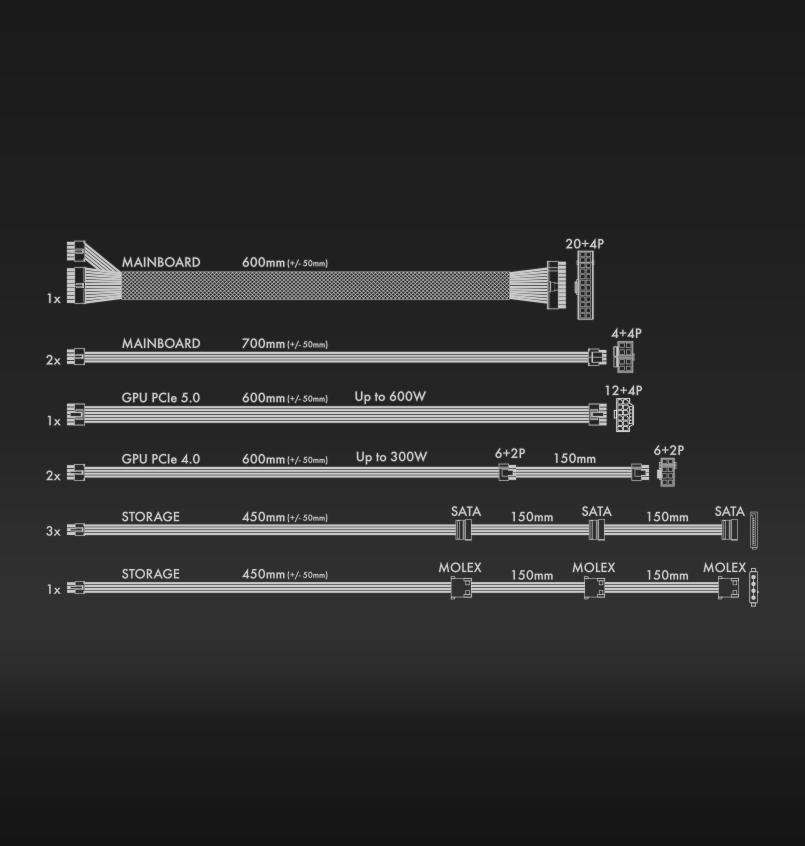

- MB connector: 1x 20+4P
- CPU connector: 2x 4+4P
- PCIe connector: 2x (2x 6+2P)
- PCIe (Gen 5.0) connector: 1x 12+4P
- SATA connector: 9x
- Molex connector: 3x 4P
- Protections: OOP, UVP, OVP, SCP, NLO, SIP, OCP, OTP
- Environmental compliance: RoHS, WEEE, ErP Lot 6
- Dimensions (LxWxH): 160 x 150 x 86 mm
- Weight: 1450 g
- Color: Black
- EAN: 5949161381335
- Warranty: 8 Years
