DISCOVER PULSAR LS

Inspired by some of the most fascinating members of the cosmic community, we introduce our first source of energy for your gaming universe, the PULSAR LS series of high-performance gaming power supplies.
The PULSAR LS series delivers 80 PLUS and 80 PLUS Bronze* certified efficiency and outstanding electrical reliability backed-up by our 6-Year Warranty available on all models (750W*, 650W, 550W, 450W).

Pulsar LS 550W
Pulsar LS 550W

PEACE OF MIND

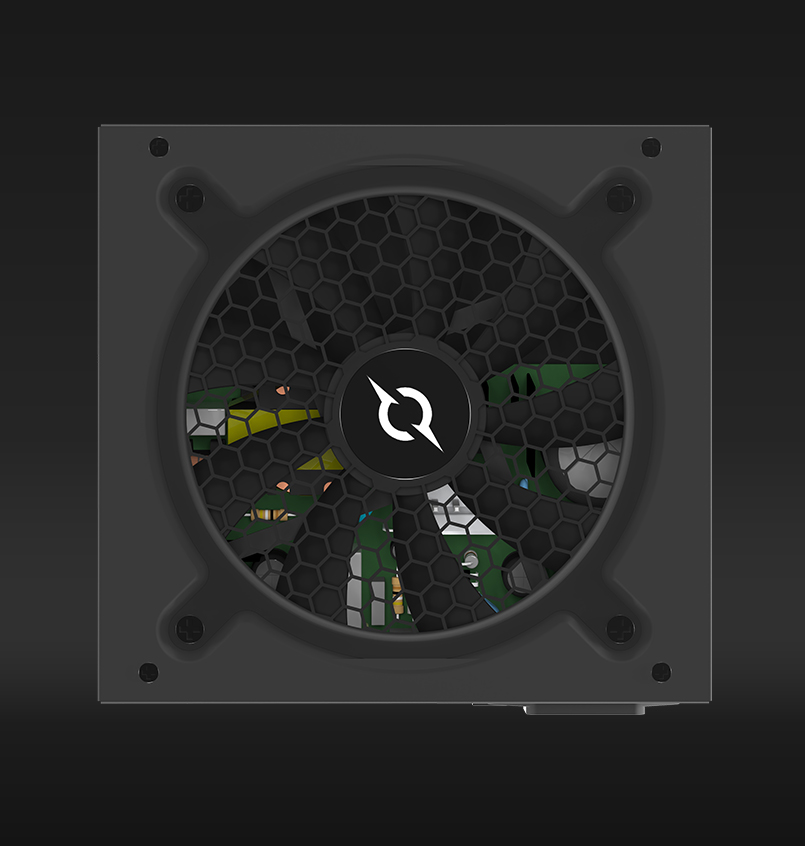

Engineered and heavily tested to the last detail, the PULSAR LS 550W power supply employs high-quality components and essential features like Japanese main capacitor rated for 105°C, Fluid Dynamic Bearing 120 mm fan with high-static pressure for excellent cooling, temperature-controlled fan speed for quiet operation, and Active Power Factor Correction which uses electronic circuits in efficiently distributing power to devices connected to the power supply.
A full array of protections is also embedded, shielding against multiple events: Over Voltage, Under Voltage, Over Current, Over Power, Over Temperature, and Short Circuit.

Pulsar LS 550W
Pulsar LS 550W

AESTHETICS MATTERS

All PULSAR LS models use ribbon-type fixed black cables to warrant better cable management. This heightens the build aesthetics and plays a decisive role in ensuring a non-restricted airflow inside your PC.

Pulsar LS 550W

FUN FACTS

From Earth, pulsars often look like flickering stars, but they aren't really stars, or at least they aren't “living” stars. They are very fast-spinning neutron stars that form when a star more massive than the sun runs out of fuel and collapses on itself. A pulsar can spin between 5000 to 40000 times per minute, and the magnetic field can be as strong as one cubic meter of it could contain more energy than has ever been generated by mankind

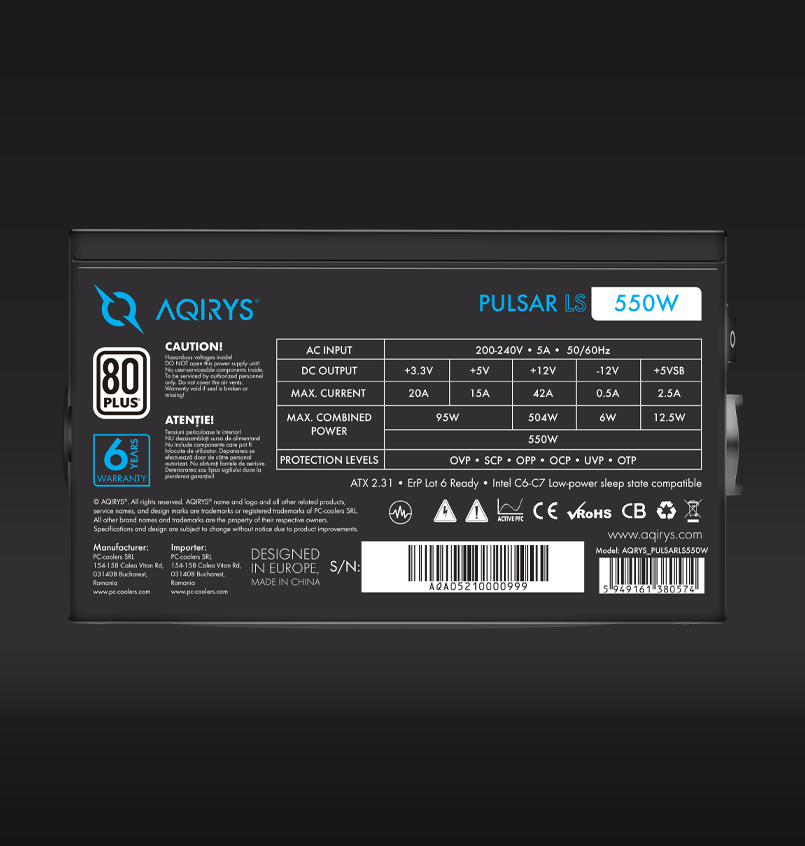

TECHNICAL DATA

  • Continuous power: 550W
  • Form factor: Intel® ATX12V 2.31
  • Efficiency: 80PLUS® White certified
  • Intel® C6/C7: Yes
  • PFC: Active
  • Illumination: No
  • Modular cables: No
  • Cable type: Flat, black
  • Fan size: 120 mm
  • Fan speed: Temperature controlled
  • Fan technology: Fluid Dynamic Bearing
  • AC Input: 200 - 240V, 4A, 50/60Hz
  • DC Output +3.3V: 20A
  • DC Output +5V: 15A
  • DC Output +12V1: 42A
  • DC Output -12V: 0.5A
  • DC Output +5Vsb: 2.5A
  • MB connector: 1x 20+4P
  • CPU connector: 1x 8P, 1x 4+4P
  • PCIe connector: 2x 6+2P
  • SATA connector: 4x
  • Molex connector: 2x 4P
  • Protections: OVP, OCP, OPP, SCP, UVP
  • Environmental compliance: RoHS, WEEE, ErP Lot 6
  • Dimensions (LxWxH): 140 x 150 x 87 mm
  • Weight: 1418 g
  • Color: Black
  • EAN: 5949161380574
  • Warranty: 6 Years
