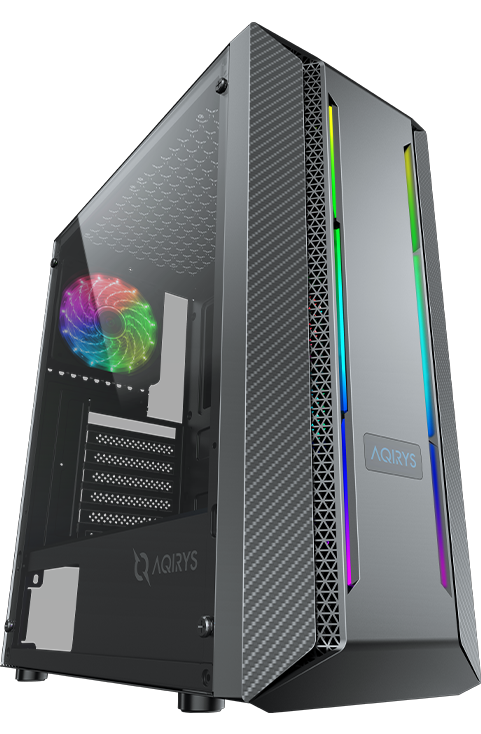

Inspired by the Big Dipper’s perhaps most famous star (a quadruple star actually), the MIZAR case ticks all the essential requirements for building your first-ever gaming PC.

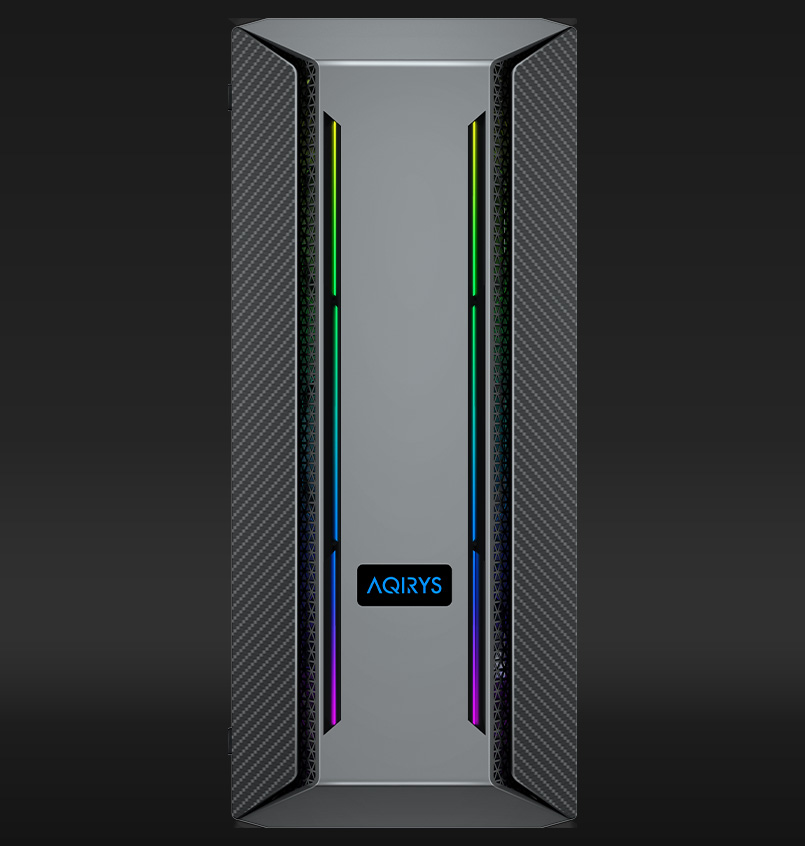

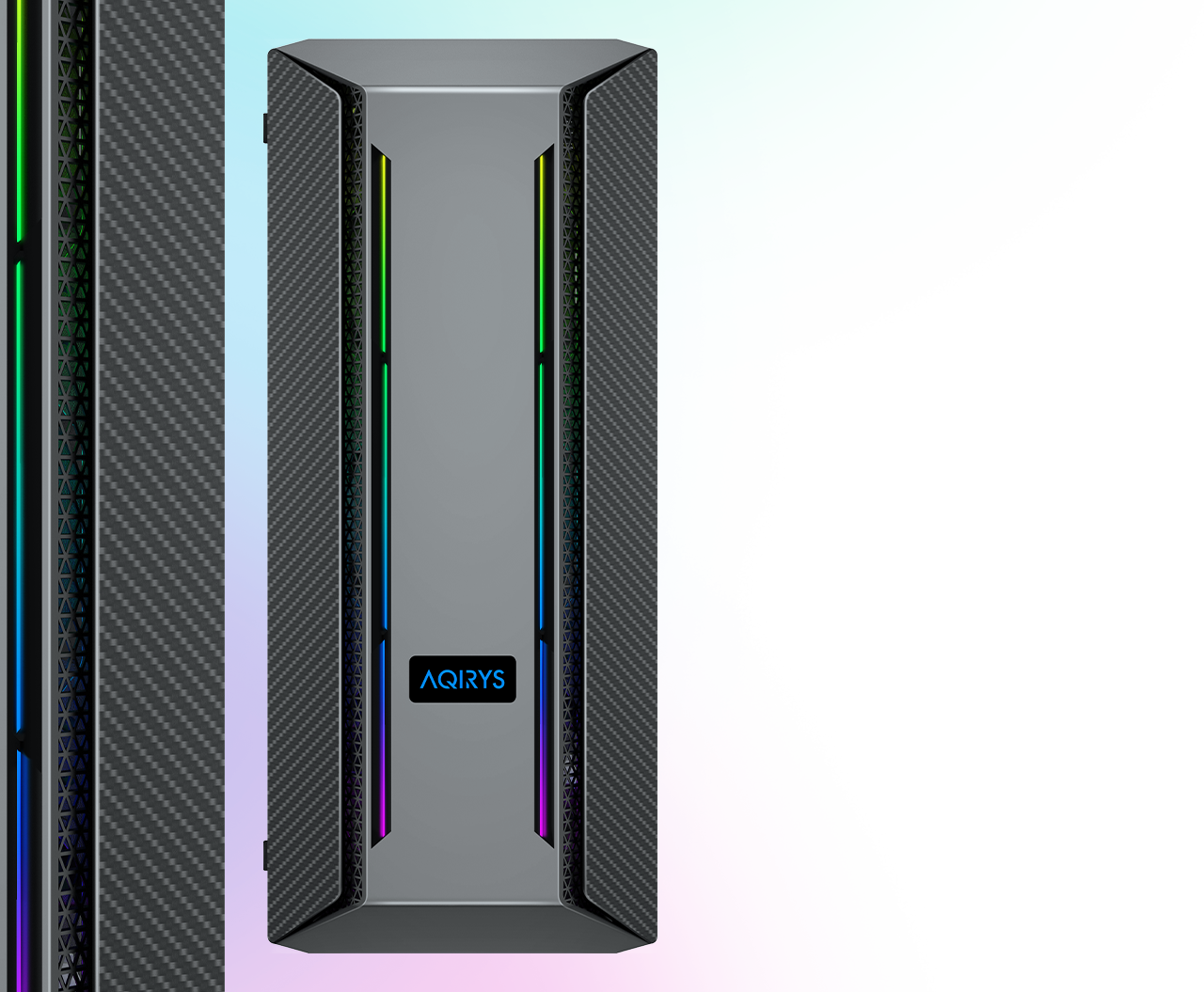

The front panel’s ARGB illumination system somehow tells the story of Mizar, which, together with the neighboring binary star, Alcor, assembles six stars in all (although the naked eye can see only two) - hence the two LED bars subtly divided in six segments! The front is completed elegantly by a backlit logo and two vertical air intakes shielded by carbon-like edges.

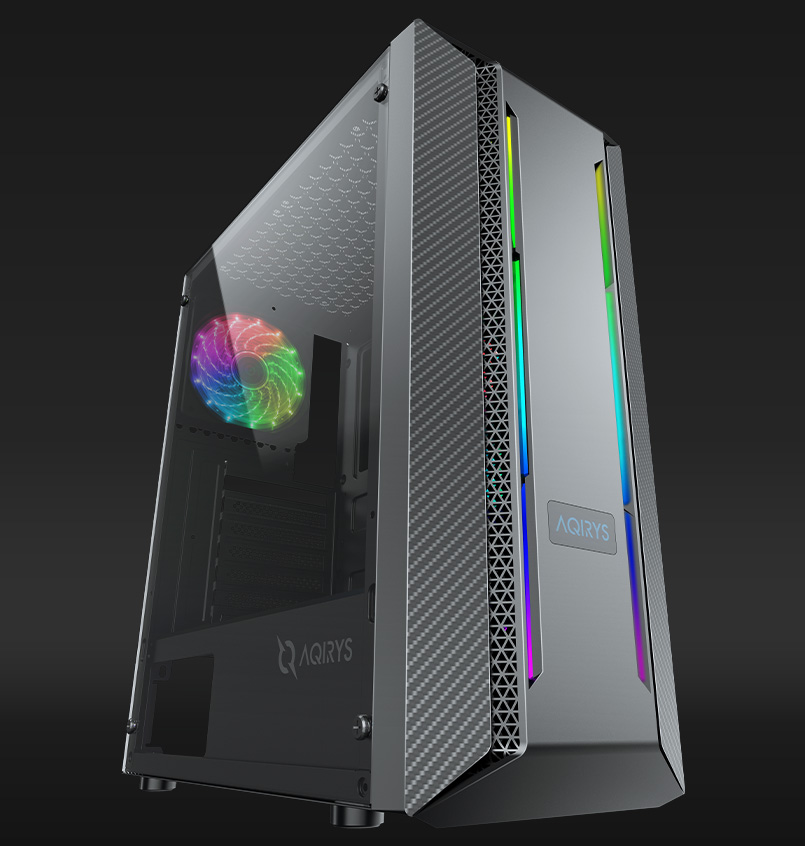

As for the curious ones, the full view light-grey tinted tempered glass side panel allows peeking under the hood at any time.
DISCOVER MIZAR
LIGHT-INFUSED AIRFLOW

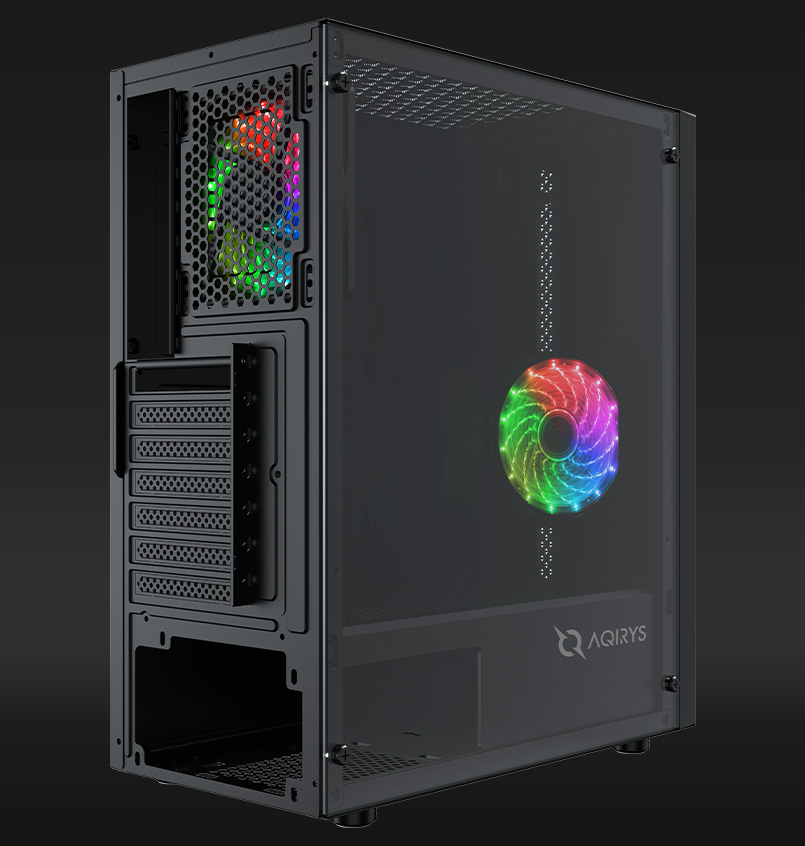

The two 120 mm fans pre-installed in MIZAR and the LED bars use ARGB lighting, that can be controlled by a dedicated button placed on the top of the case. Furthermore, you can connect the LED bar and the fans to the ARGB header of a compatible motherboard so the case illumination can match and sync with the rest of the hardware. All you need to do is press the LED button for five seconds, and the motherboard will take over from there.
Although the airflow required to cool even advanced hardware is provided, out of the box, you can boost the cooling capacity at any time by adding up to six extra 120 mm fans (equally divided between front, top, and the PSU chamber).
VERSATILE INTERIOR

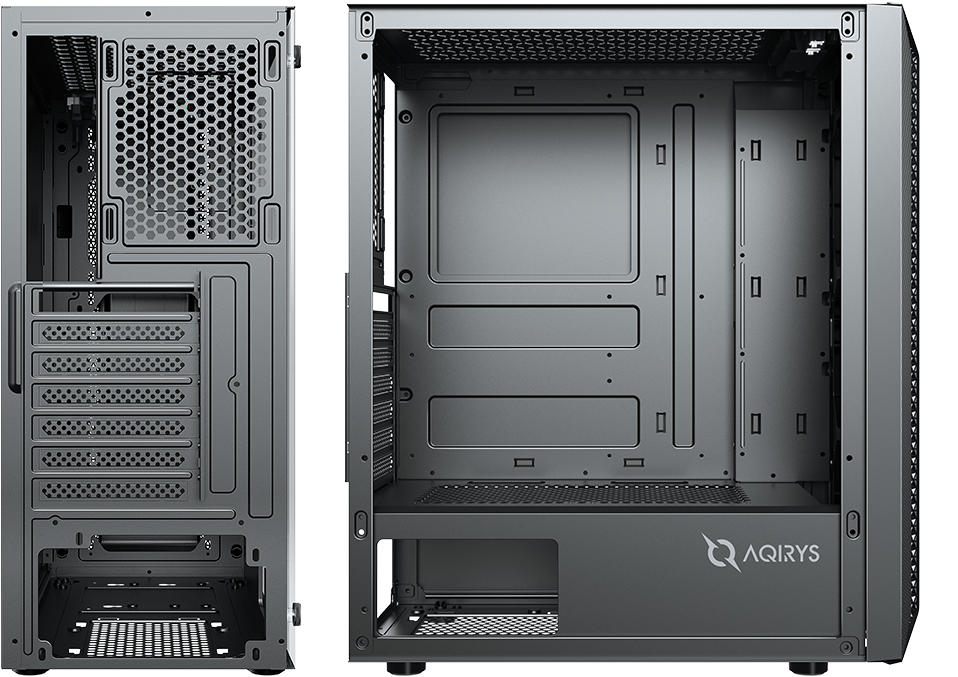

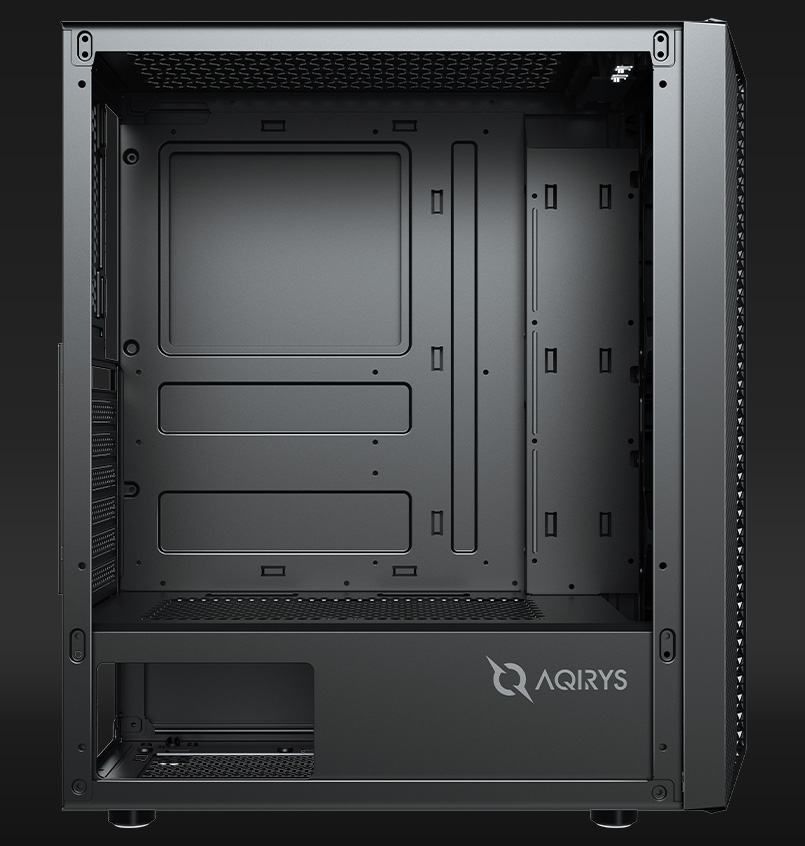

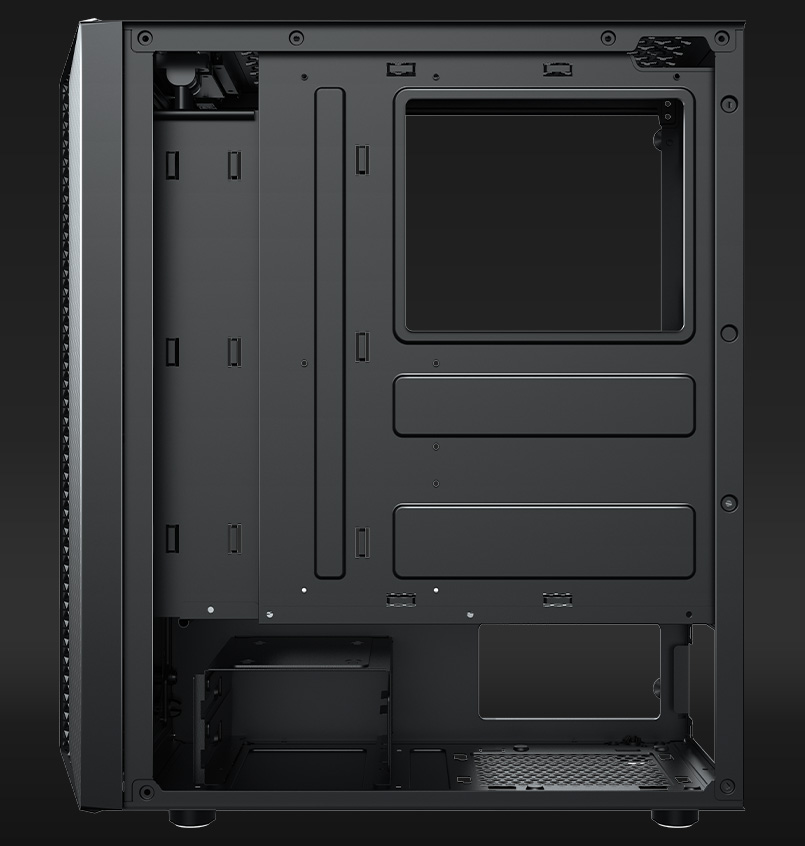

Fully protected by a magnetic dust filter, the all-black interior of MIZAR is ready to accommodate high-performance hardware, ranging from ATX motherboards and 340 mm long graphics cards to 150 mm height CPU coolers. The dedicated chamber for bottom PSU installation, together with the vertical SSD mounts, is very well complemented by cable management outlets that will keep everything neat and clean, avoiding any hot air pockets
FUN FACTS
Mizar and Alcor appear so closely linked in the sky that they are often said to be a test of visual acuity. Mizar represents four stars actually, and Alcor two stars. So what we see as two stars are six in reality!
The name MIZAR comes from the Arabic miʼzar, meaning cover, wrapper, or apron. In Chinese Taoism, Mizar is known as the star of Lu and is associated with prosperity and influence.
TECHNICAL DATA
- Case type: Midi Tower
- Materials: Tempered Glass (left side panel), 0.5 mm SPCC steel, ABS
- M/B support: Mini-ITX, Micro-ATX, ATX
- PSU support: ATX, 175 mm maximum length (bottom installation)
- VGA support: 340 mm maximum length
- CPU cooler support: 150 mm maximum height
- Liquid cooling support: Yes, Rear mount - 120mm
- Drive bays: 2x 3.5", 1x 2.5"

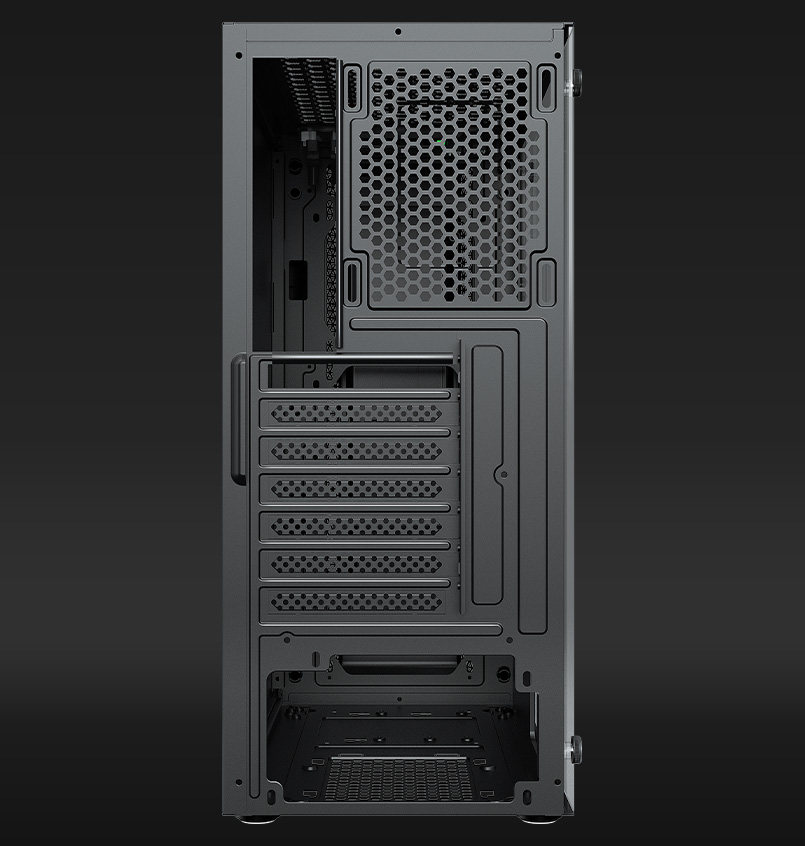

- Expansion slots: 7

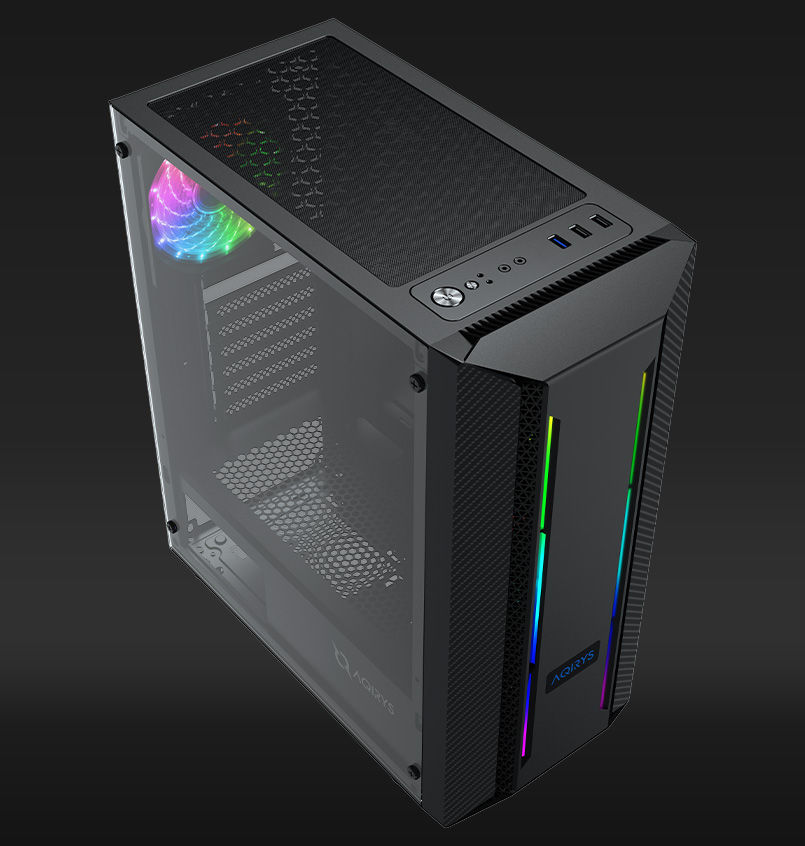

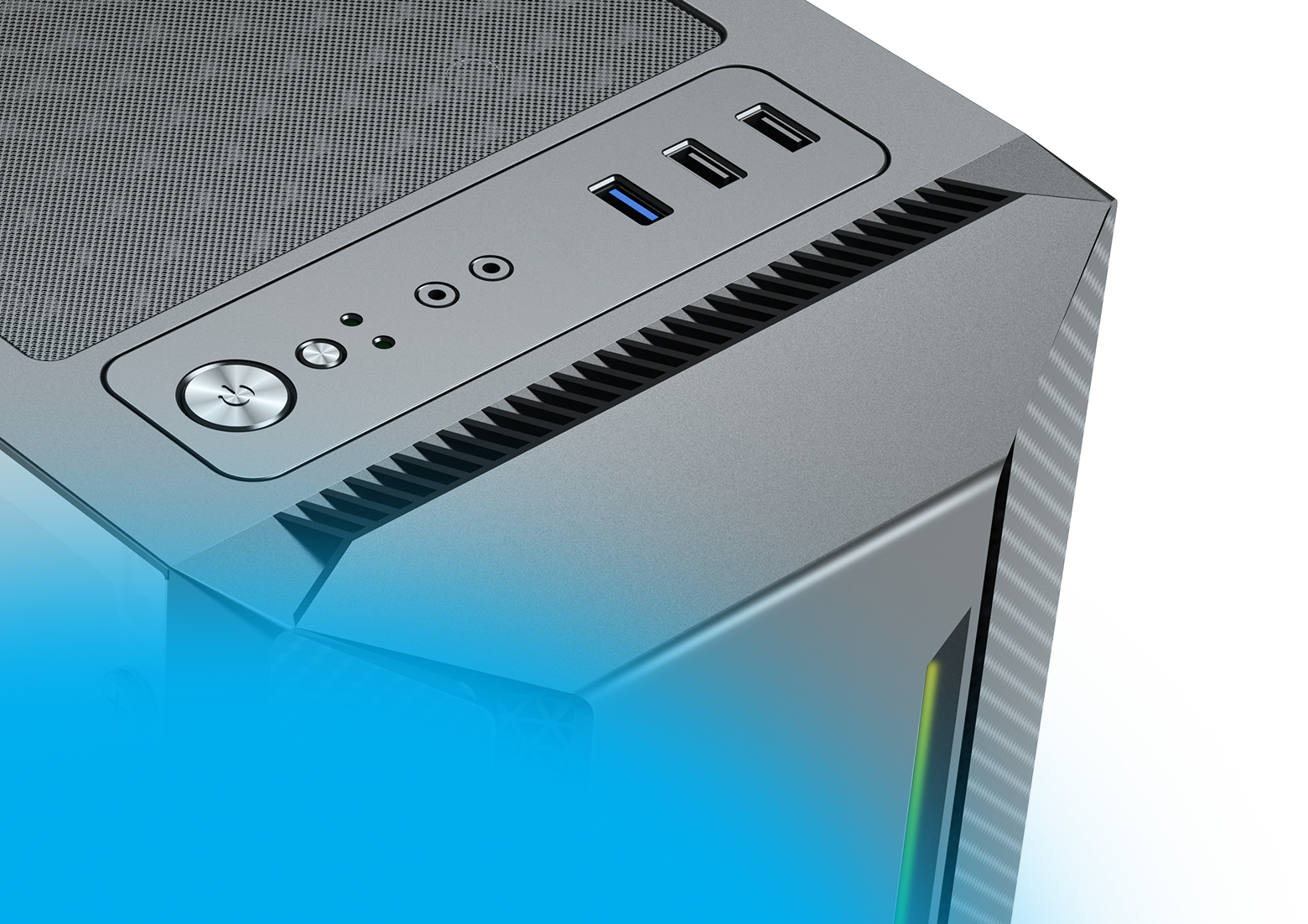

- Front panel I/O: 1x USB 3.0, 2x USB 2.0, HD Audio, LED button
- Illumination: ARGB (fans and LED-bar controlled by LED button on I/O panel)
- Supported fans: 8 pieces - Rear 1x 120 mm, Front 3x 120 mm, Top 2x 120 mm, Bottom 2x 120 mm
- Installed fans: 2 pieces - Rear 1x 120 mm (RGB, no PWM), Front 1x 120 mm (RGB, no PWM)
- Fan model: 4P-12LD12-RGB
- Special features: removable magnetic dust filter, PSU chamber, cable management outlets
- Dimensions (LxWxH): 384 x 190 x 457 mm
- Weight: 4700 g
- Color: Black
- EAN: 5949161380284
